Technical parameters

■ Model specifications: TY-ASLM1/2/4/5/6/8/10/12

■ Operating voltage: DC12V

■ Operating current: < 20mA

■ Installation method: Embed 86 bottom box installation

■ Dimensions: 86 *86*38mm

Functional Features

■ 1Key 2 keys 4 keys 5 keys 6 keys 8 keys 10 keys 12 keys

■ LED Blue backlight status display

■ Integrated tempered glass panel, waterproof and dustproof, sensitive to movement

■ Dimming settings, scene settings and management

■ Chinese characters and patterns can be customized according to user requirements

■ RS485 Communication, standard Modbus- RTU Communication protocol

■ Control objects can be set

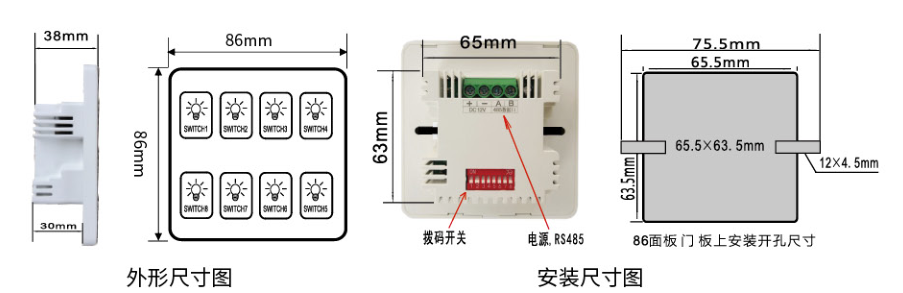

Dimension drawing
