Technical parameters

■ Model specifications: TY-YJ350

■ Operating voltage: DC12V

■ Touch screen size: 3.5 inches

■ Resolution: 320 *240

■ Installation method: embedded 86 bottom box to install fixed installation

■ Dimensions: 100 mm*100mm*47mm

■ Fixed installation size: 80 mm

Functional Features

■ Password protection

■ Scene Setting and Control

■ Timing control and management

■ Light status feedback

■ Clock display

■ Free editing of the light name and scene name

■ Light brightness adjustment function

■ Remote programming and management functions

■  RS485 Communication, standard Modbus- RTU Communication protocol

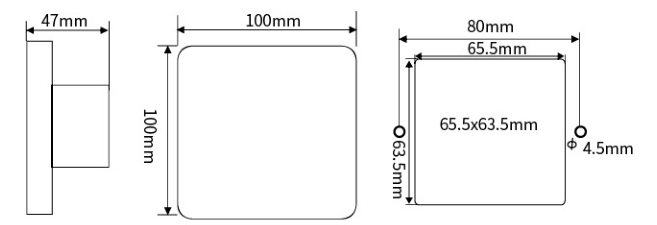

Dimension drawing
