Technical parameters

■ Model specifications: TY-YJ700

■ Operating voltage: DC12V

■ Touch screen size: 7 inches

■ Resolution: 800 *480

■ Installation method: embedded installation

■ Dimensions: 210 mm* 150mm' 38mm

■ Opening size: 198 mm* 138mm

Functional Features

■ Password protection

■ Scene Setting and Control

■ Timing control and management

■ Light status feedback

■ Clock display

■ Free editing of the light name and scene name

■ Light brightness adjustment function

■ Remote programming and management functions

■  RS485 Communication, standard Modbus- RTU Communication protocol

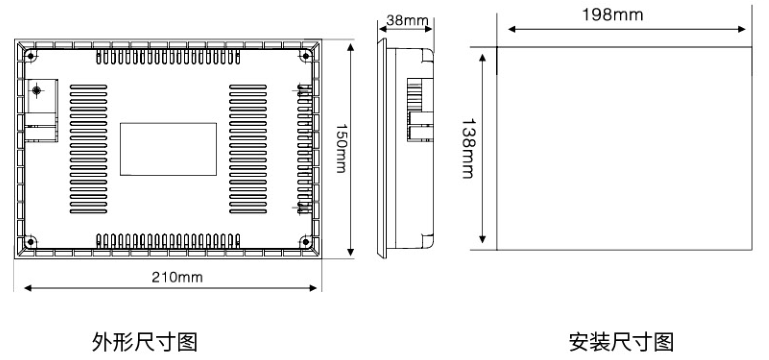

Dimension drawing
