Technical parameters

■ Model specifications: TY-WB

■ Operating voltage: DC12V

■ Detection distance: 3 ~12m (Adjustable )

■ Installation height: 2.5-3.6 m

■ Detection angle: 120 °

■ Dimensions: 94 (middle )*46(H)mm

Functional Features

■ RS485 Communication, no need to convert, direct access to the lighting system

■ High accuracy, wide range, good stability

■ All-round automatic temperature compensation, super anti-fault resistance

■ Support remote editing and management

■ Installation method: fixed installation or ceiling installation

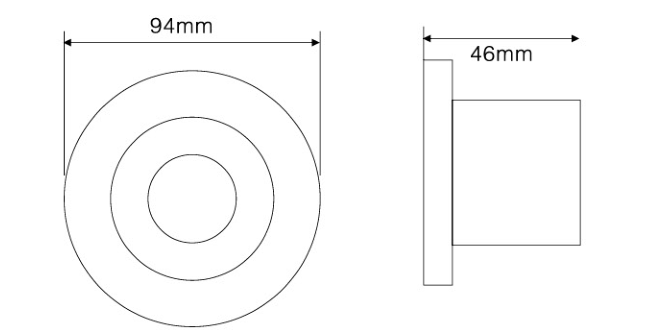

Dimension drawing

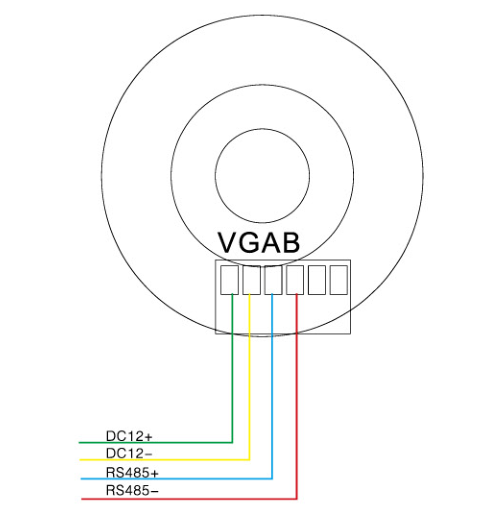

Wiring schematic diagram
