Technical parameters

■ Model specifications: TY-GK

■ Operating voltage: DC12V

■ Accuracy: 3% soil FS (25°C)

■ Warm Piao: < 0.2%FS/°C .

■ Ambient temperature:-30-70 °C

■ Brightness value: 0-500 LUX(Can be customized according to the user )

■ Dimensions: 110 * 80*35mm

Functional Features

■ RS485 Communication, no need to convert, direct access to the lighting system

■ High precision, wide range, good stability

■ Good linearity, long transmission distance, strong anti-interference ability

■ Support remote editing and management

■ Installation method: Fixed installation

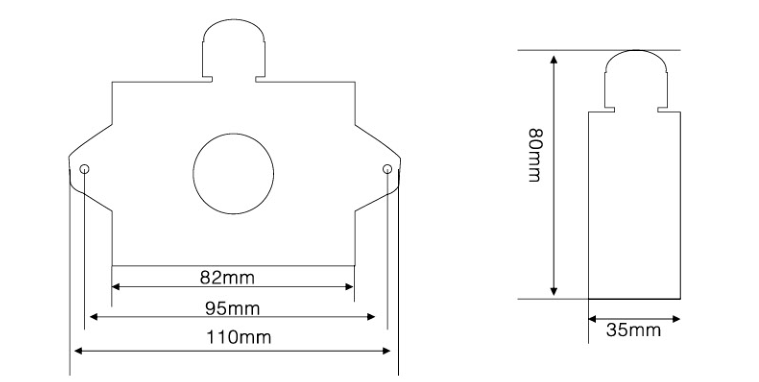

Dimension drawing

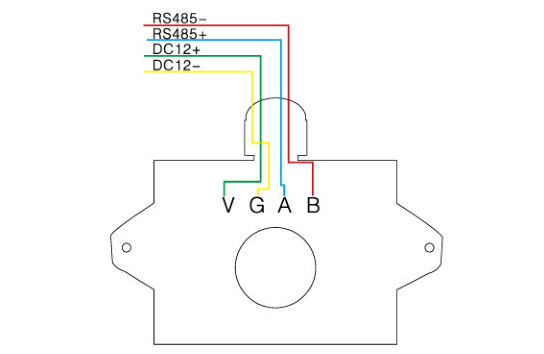

Wiring schematic diagram
