The intelligent control device for switch cabinet has functions such as dynamic simulation diagram, temperature and humidity control inside the cabinet, high voltage live display and locking function, voice error prevention prompt, opening and closing indication, energy storage indication, remote/local operation, opening/closing operation, lighting operation, RS485 communication interface, etc. It can directly replace the simulation diagram and temperature and humidity controller, and effectively improve the quality of the switch cabinet.

Main functions and technical indicators

◆ Working voltage: AC/DC 165~265V;

◆ Dielectric strength: ≥AC2000V;

◆ Insulation performance: ≥100MΩ;

◆ Voltage circuit power consumption: ≤8VA;

◆ Anti-electromagnetic interference function: in compliance with IEC255-22 standards;

◆ Dynamic control range: twice/second;

◆ Humidity control range: 20~100%RH;

◆ Temperature control range: -20℃~+100℃;

◆ Relationship between switch input terminals and LED digital display: dynamic configuration;

◆ Communication method: RS485, ModBus protocol.

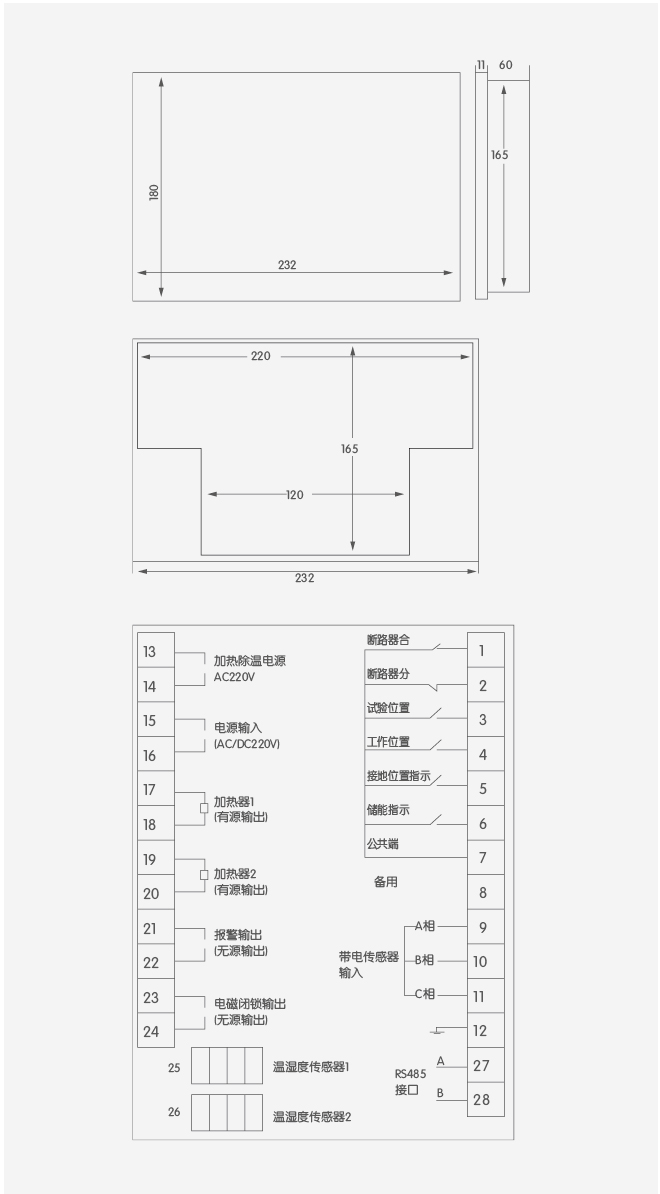

Installation method and wiring diagram

Dimensions: 232mm×180mm×71mm     Opening size: 220mm×165mm
