The intelligent control device for switch cabinet has functions such as dynamic simulation diagram, temperature and humidity control in the cabinet, high-brightness digital tube display of temperature and humidity values, high-voltage live display and locking function, voice error prevention prompt, opening and closing indication, energy storage indication, remote/local operation, opening/closing operation, lighting operation, RS-485 communication interface, etc. It can directly replace the existing primary circuit simulation diagram and temperature and humidity controller, and effectively improve the quality of the switch cabinet.

Main functions and technical indicators

◆ High brightness LED display;

◆ Temperature and humidity control values are optional;

◆ Working voltage: AC/DC 165-265V;

◆ Insulation performance: ≥100MΩ;

◆ Voltage circuit power consumption: ≤10VA;

◆ Anti-electromagnetic interference function: in compliance with IEC255-22 standards;

◆ Dynamic flashing frequency: twice/second;

◆ Relationship between switch input terminals and LED digital display: dynamic configuration;

◆ Communication method: RS485, ModBus protocol.

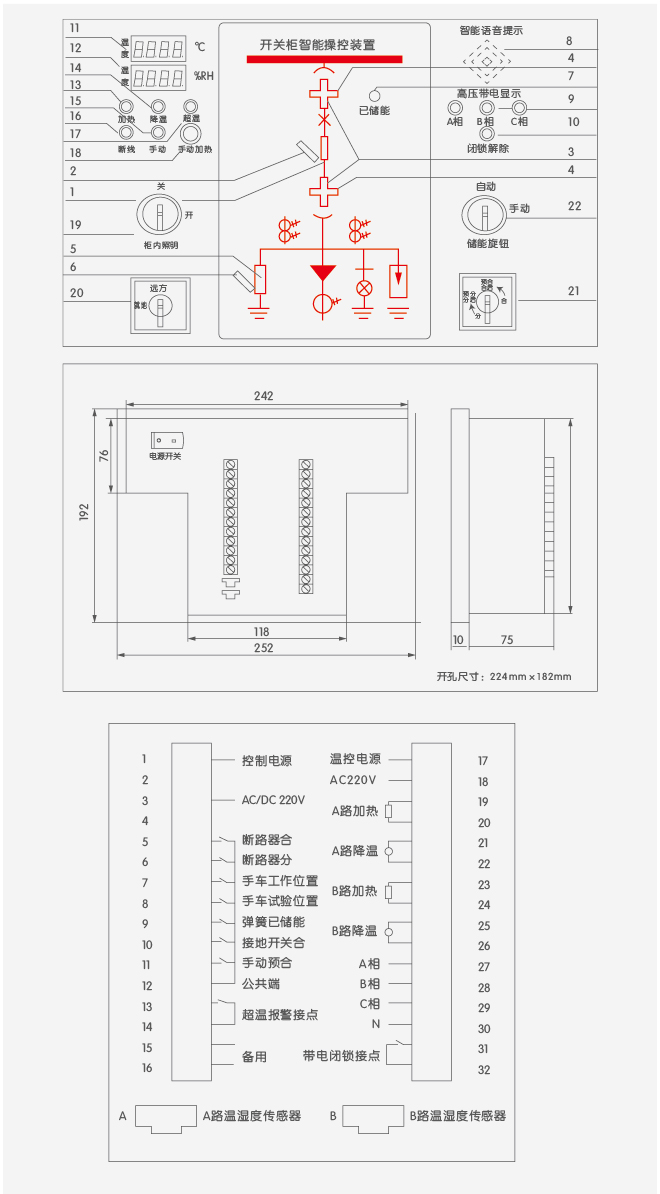

Installation method and wiring diagram

Dimensions: 232mm×180mm×71mm     Opening size: 244mm×182mm
