The intelligent control device for switch cabinet has dynamic simulation diagram, temperature and humidity control inside the cabinet, high voltage live display and locking function, voice error prevention prompt, opening and closing indication, energy storage indication, remote/local operation, opening/closing operation, Chinese interface LCD display, field programmable, digital lighting switch and automatic human body induction. Online temperature measurement of contacts and cable connectors, RS485 communication interface and other functions. This product has exquisite appearance, high cost performance, and effectively improves the grade of switch cabinet.

Main functions and technical indicators

◆ High-definition LCD display;

◆ Temperature and humidity control settings are field programmable;

◆ Online temperature measurement of six-way contacts and cable connectors (can be expanded to nine-way);

◆ Full power meter function;

◆ Two-way electric energy pulse output;

◆ Dual power supply: AC/DC 165-265V;

◆ Insulation performance: ≥100MΩ;

◆ Voltage circuit power consumption: ≤12VA;

◆ Anti-electromagnetic interference function: in compliance with IEC255-22 standards;

◆ Dynamic flashing frequency: twice/second;

◆ Relationship between switch input terminals and LED digital display: dynamic configuration;

◆ Communication method: RS485, ModBus protocol.

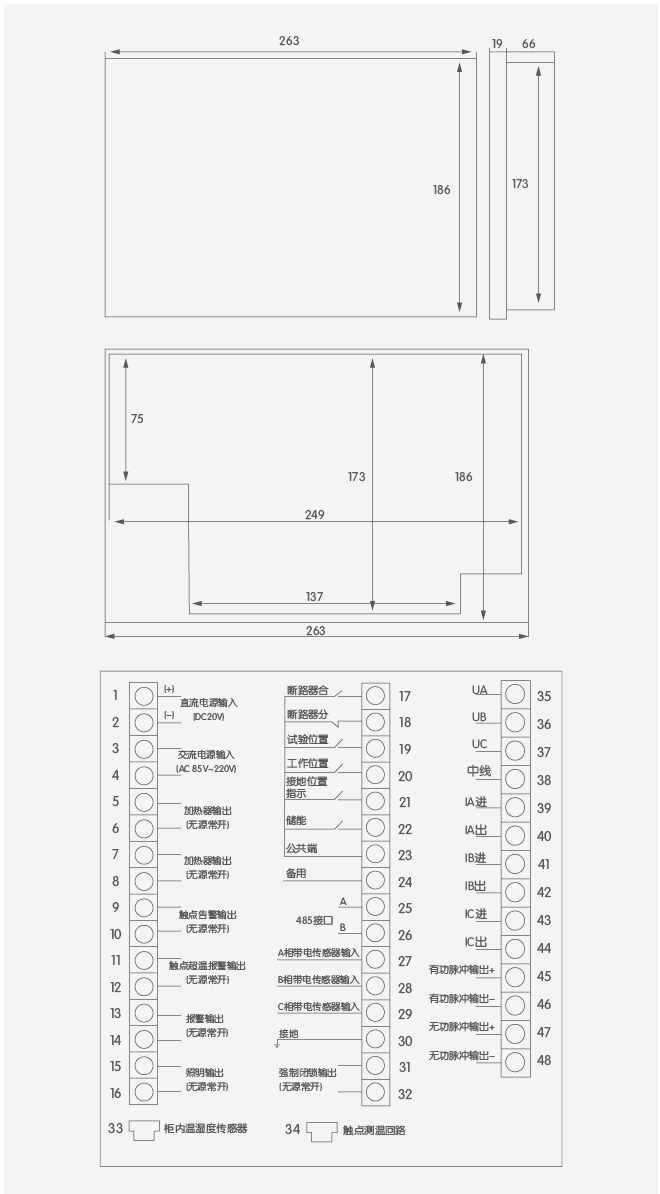

安装方式及接线图

外形尺寸：263mm×186mm×85mm     开孔尺寸：249mm×173mm
